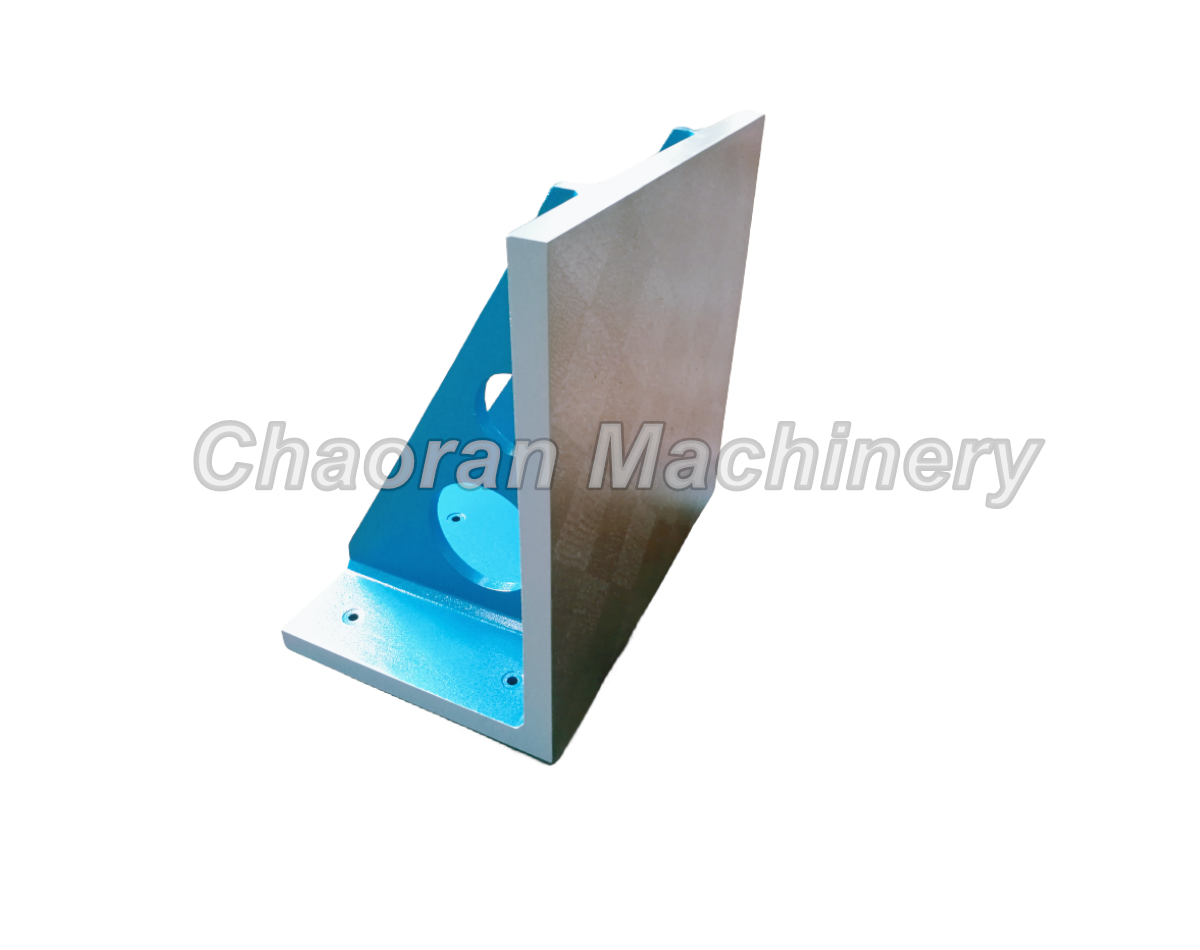

Angle plate

Material Gray cast iron
Size Customized
Roughness Ra1.6~6.3
Surface treatment Hand scraping
Flatness Standard GB/T22095-2008 or DIN876
Package Plywood case with anti-rust treatment
Detail

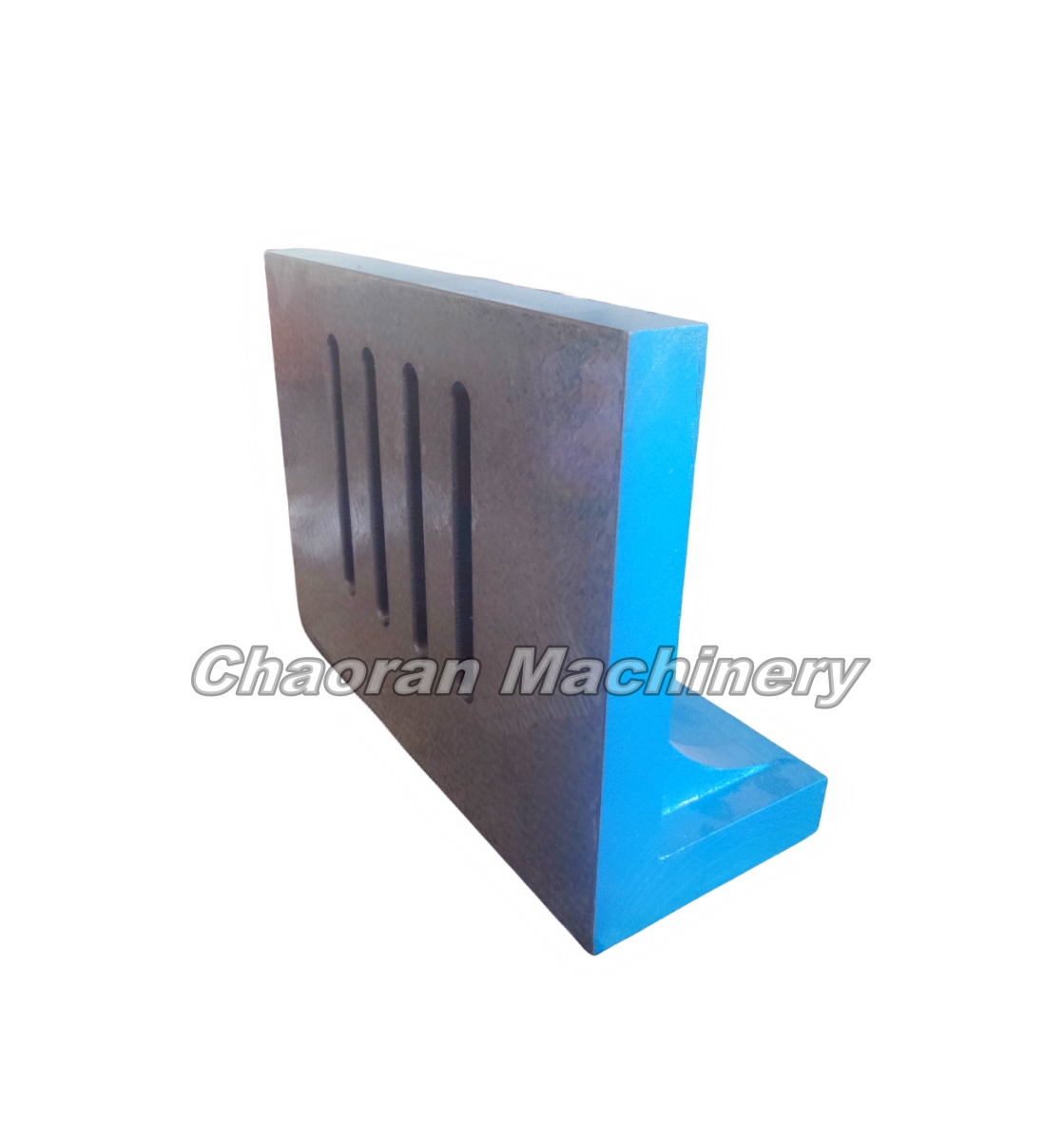

It is made in accordance with the GB6092-85 manufacturing standard.It choose the HT200-300 as the raw material,and applies the scraping technology for its working surface .Our precision slotted angle plate is used for the parts inspection.Additionally,it is used for the clamping in the machining operation as well as inspecting the right angle of the working pieces.When repairing the equipment,you can use this angle measuring product to inspect the verticality between the parts.This is also frequently used for scribing.




Type(mm)

Perpendicularity between
adjacent measuring
surface

Flatness and straightness
of measuring surface

Flatness and straightness
of datum surface


                                                             Precision Grade (μm)


1

2

3

1

2

3

1

2

3

200 × 200

8

16

30

4

8

16

6

12

24

300 × 200

10

20

40

5

10

20

8

16

30

300 × 300

10

20

40

5

10

20

8

16

30

400 × 300

12

24

45

6

12

24

10

20

40

400 × 400

12

24

45

6

12

24

10

20

40

500 × 400


28

50


14

28


24

48

500 × 500


28

50


14

28


24

48

800 × 600


35

60


18

35


28

55


All sizes are customized according to your requirement.
