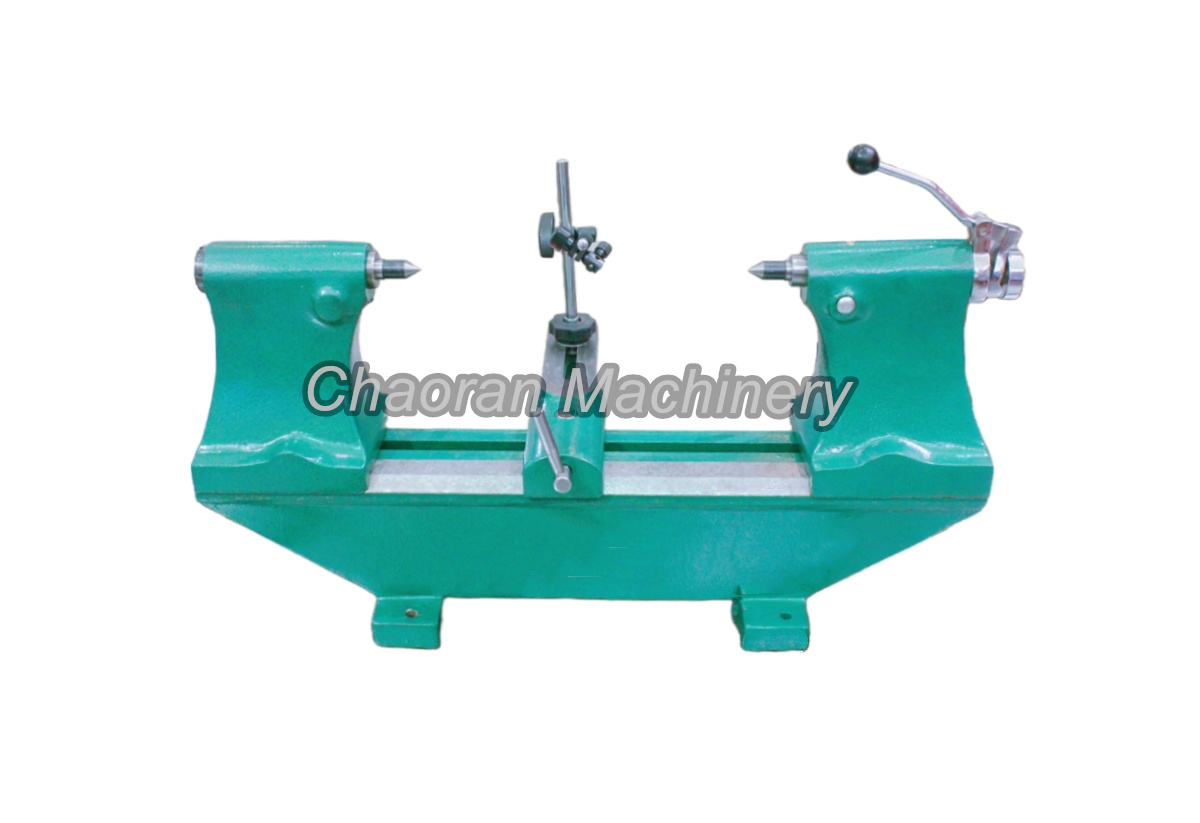

Bench center

Bench center is mainly used for inspecting the radial bound, circular bound and end surface circular bound of the axial or disk parts. Its accuracy is high while it is very convenient in use.

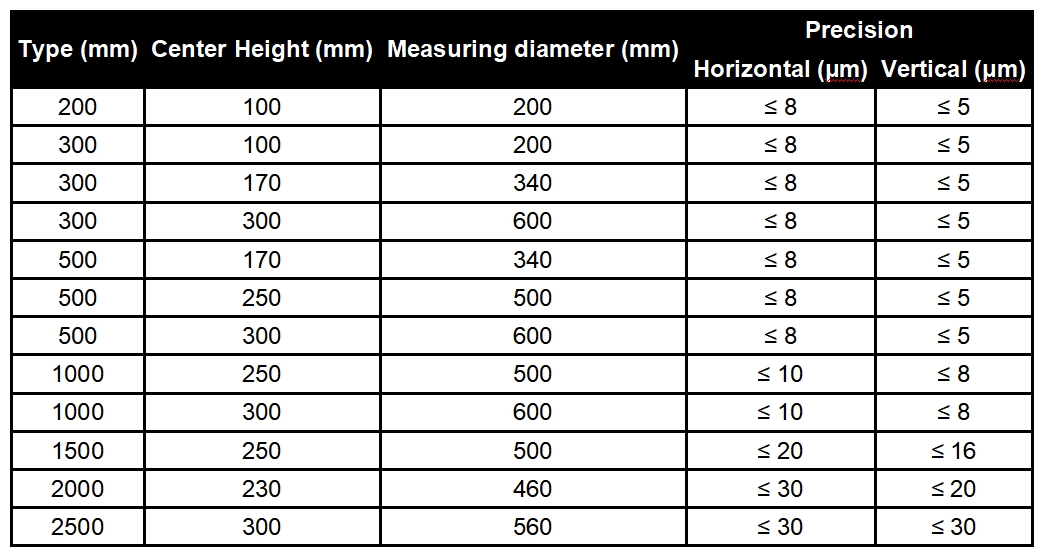

Main technique parameters:
1\ The radial circular bound of the Morse No. 2 finial 60 degrees cone surface to the Morse cone≤0.005mm.
2\ The parallelism between the finial axle within the scope of 100mm and the leading track (parallel and vertical direction)≤0.006mm.
3\ The max diameter of the tested part is 270mm.
4\ Measuring length 300mm\500mm\1000mm\1500mm\2000mm.
