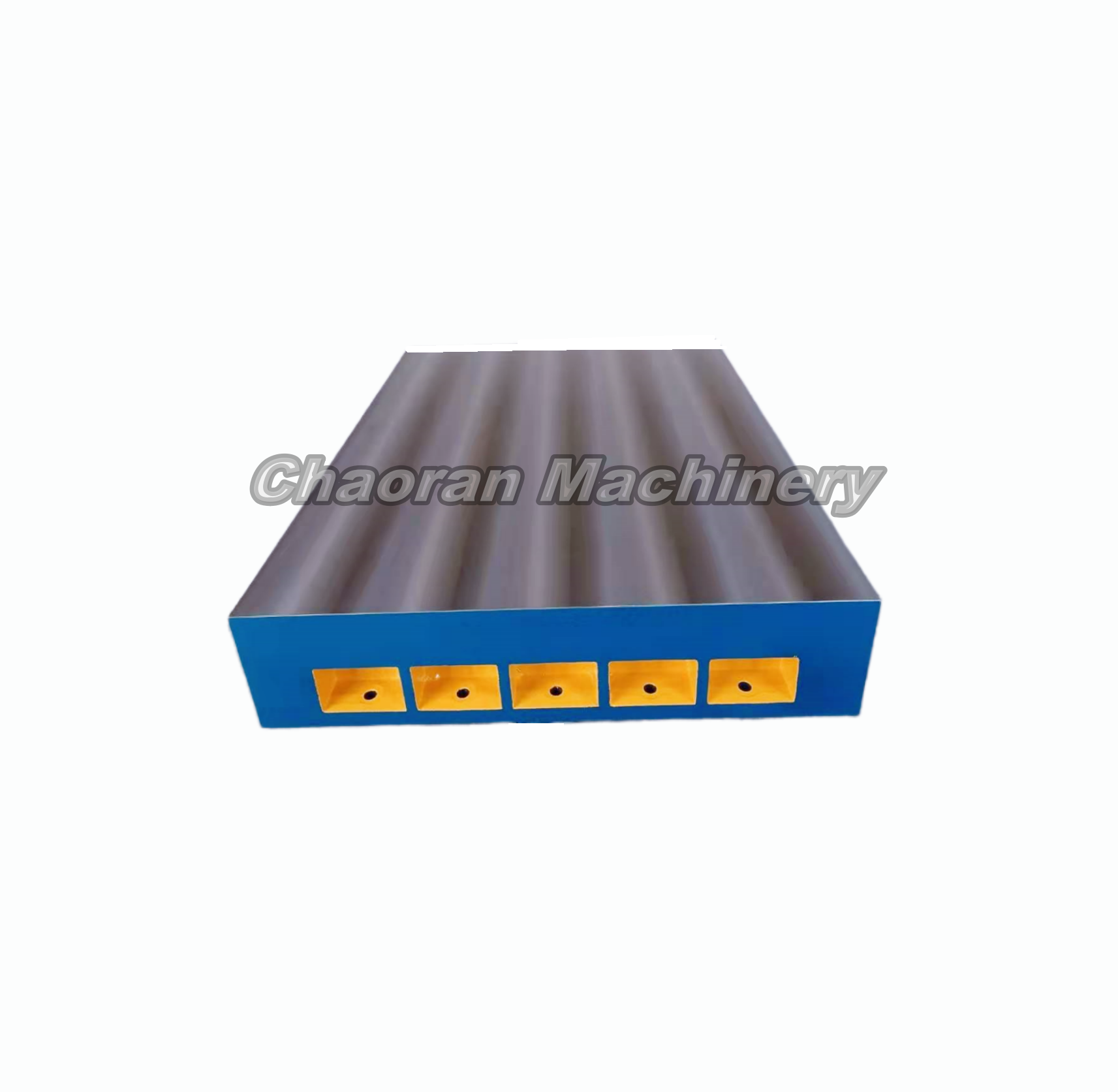

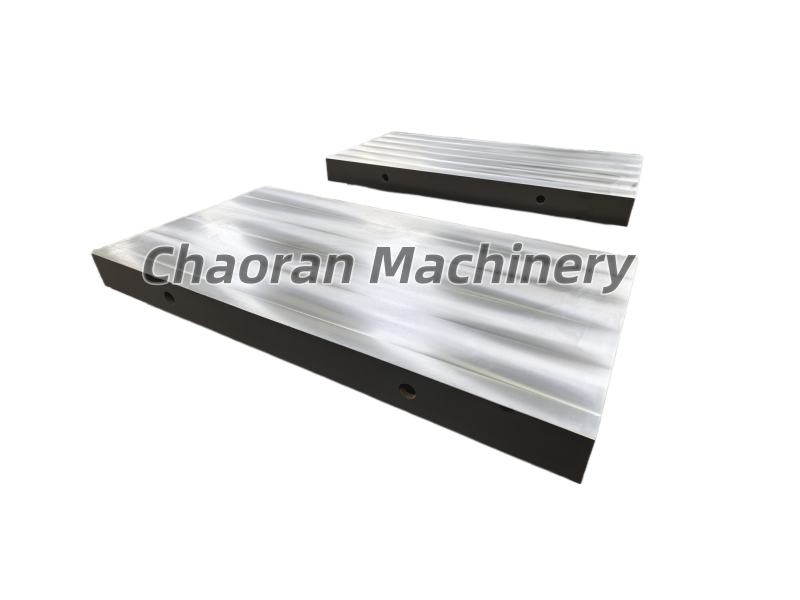

Cast iron surface plate (Fine milling)

Material Gray cast iron

Size 300×300~10000×3000mm

Roughness Ra 3.2

Surface treatment Fine milling

Flatness Standard GB/T22095-2008 or DIN876

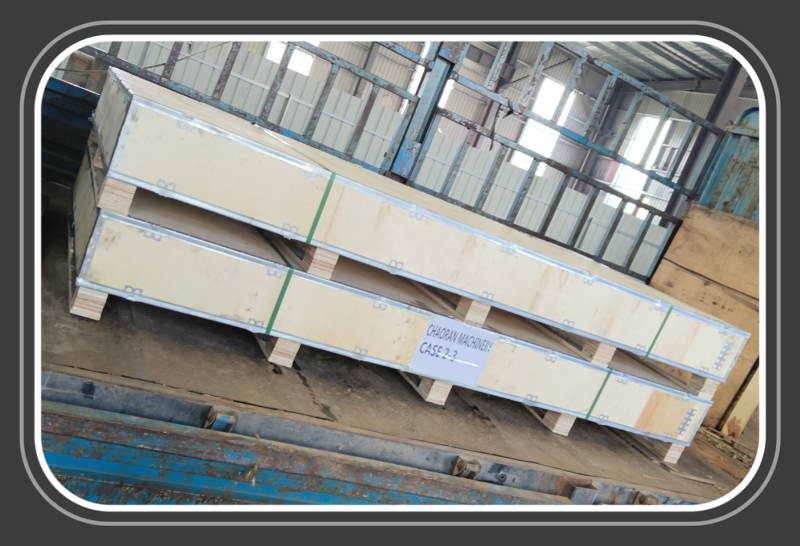

Package Plywood case with anti-rust treatment

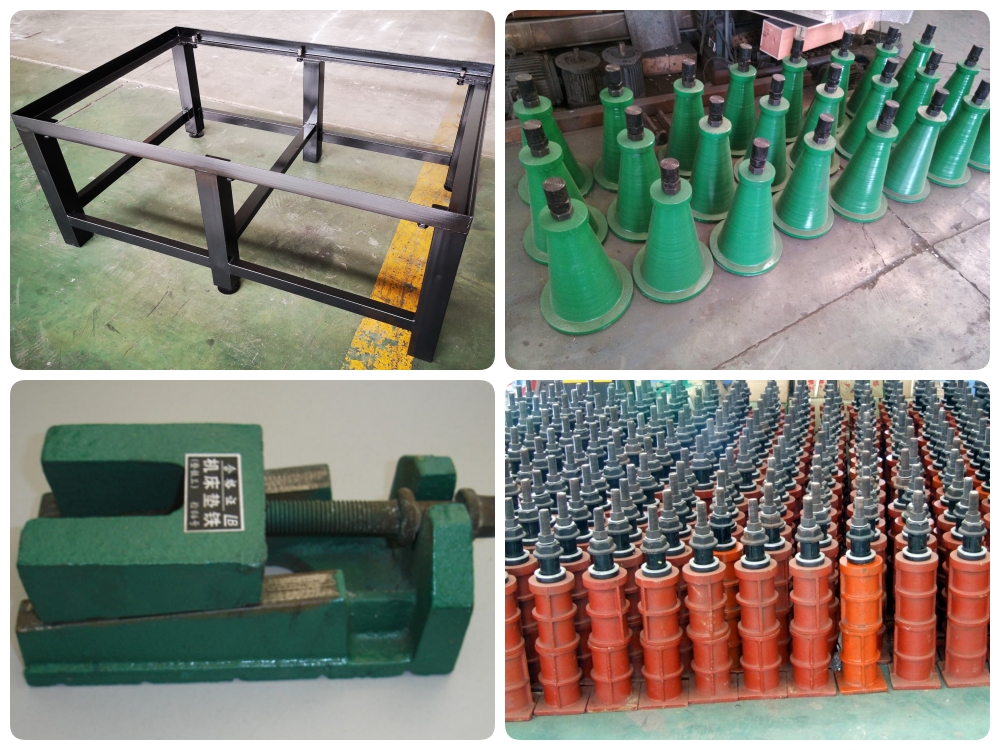

Detail

Usage: It is applicable to various inspections and benchmark planes for accuracy measurement. It can be used as the measurement benchmark for machine tool inspection and to inspect the dimension accuracy or running difference with the function of performing precise lineation. It is an inevitable tool during machine manufacturing.

The material is high strength cast iron HT200-300, and the rigidity of working face reaches HB170-240. It goes through twice of man work processing (man work anneal by 600 degree with natural validity of 2-3 years) in order to make the product stable in accuracy and good in grinding resistance.

Testing report or certificate can be offered.
Painting colour can be requested.
These plates are available in a wide range of sizes up to 3m wide and 10m long in a one-piece design.Unlimited size when used in combination.

Also available:entry holes,drain troughs,positioning holes,keyways,scribe lines and so on.

Parameters:

Type ( mm )	Precision Grade ( μm )
Type ( mm )	0	1	2	3
100 × 100	4	8	16
200 × 100	5	10	20
200 × 200	5	10	20
300 × 200	6	12	24
300 × 300	6	12	24
400 × 300	6	12	24
400 × 400	6	12	24
500 × 400	6	12	24
600 × 400	7	14	28
600 × 500	7	14	28
800 × 400	8	16	32	80
800 × 600	8	16	32	80
900 × 600	8	16	32	80

Type (mm)	Precision Grade ( μm )
Type (mm)	1	2	3	Final machining
1000 × 750	18	36	90
1000 × 1000	20	39	96
1200 × 1000	20	39	96
1500 × 1000	24	48	120
2000 × 1000	26	52	129
2000 × 1500		56	140
2000 × 2000		60	152	230
3000 × 1000			168	248
3000 × 1500			174	254
3000 × 2000			184	275
4000 × 2000			219	310
4000 × 3000			240	360
6000 × 3000			308	460
