T-slotted clamping plate
Detail

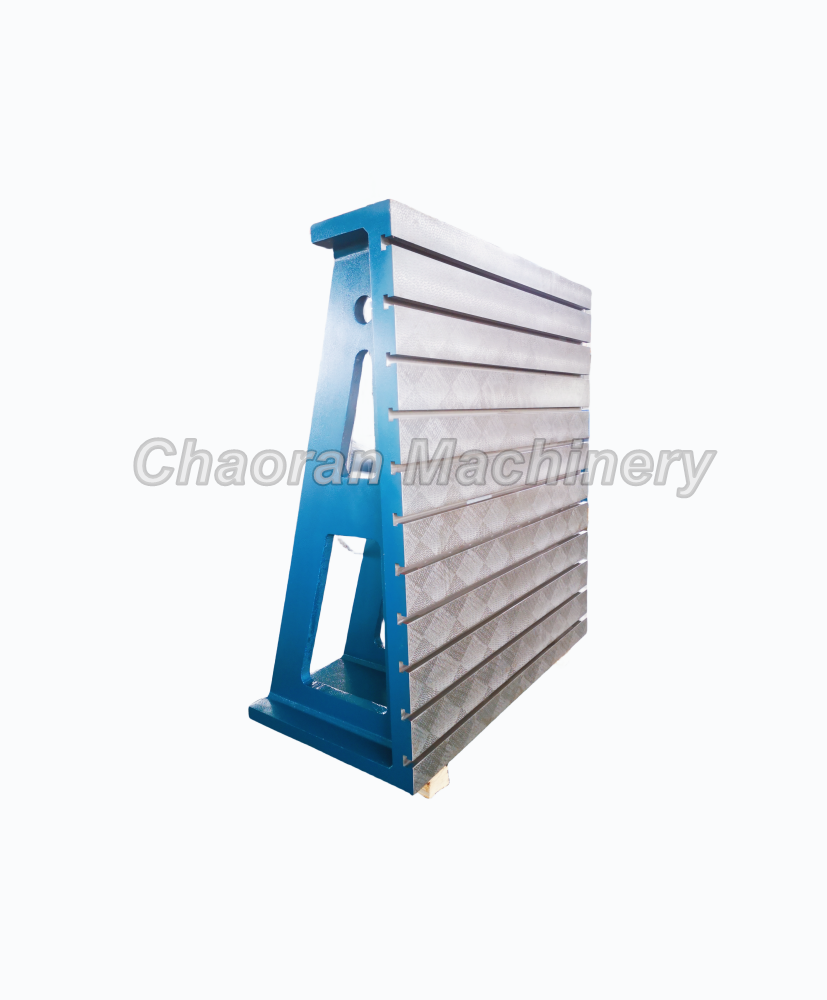

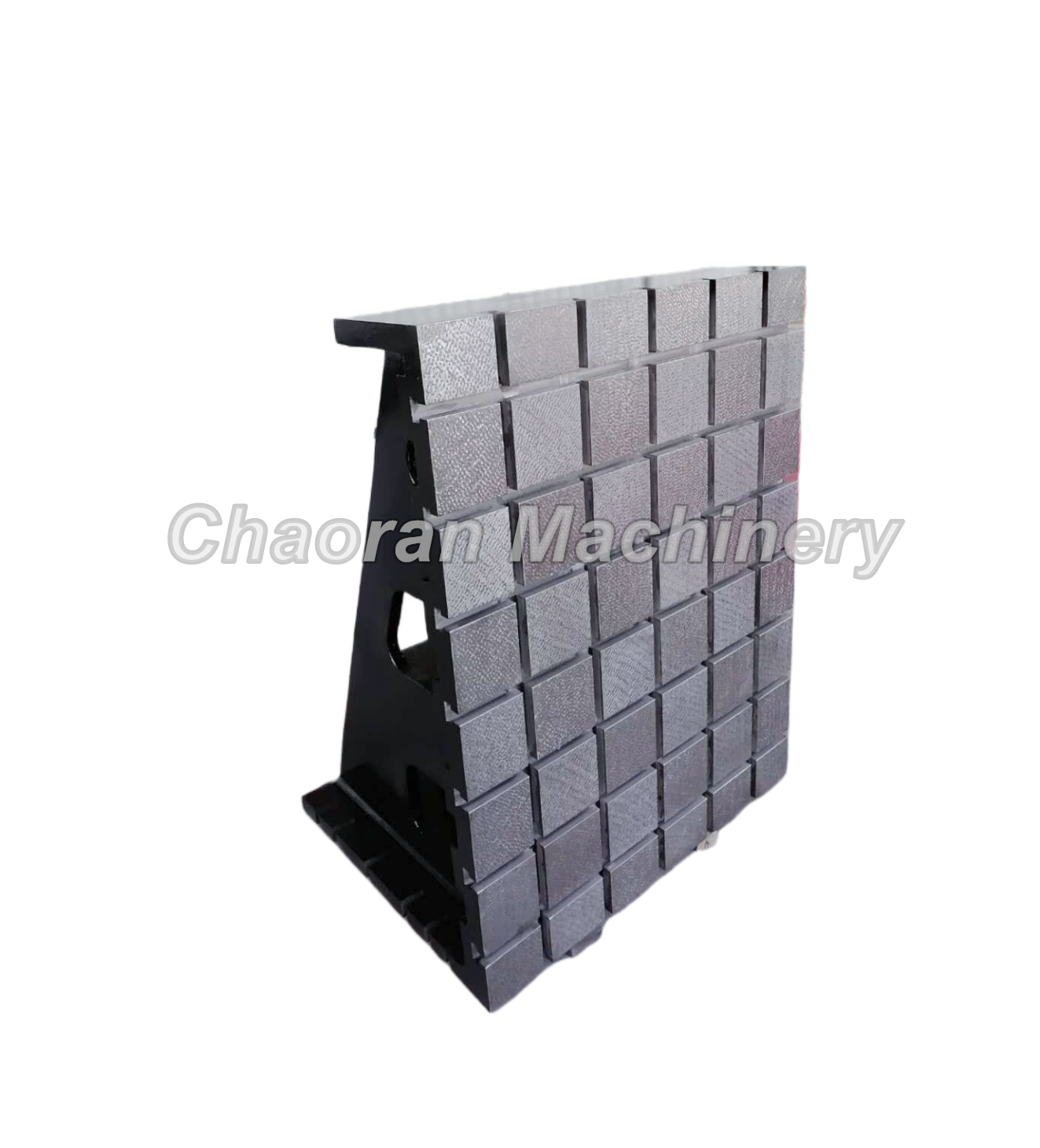

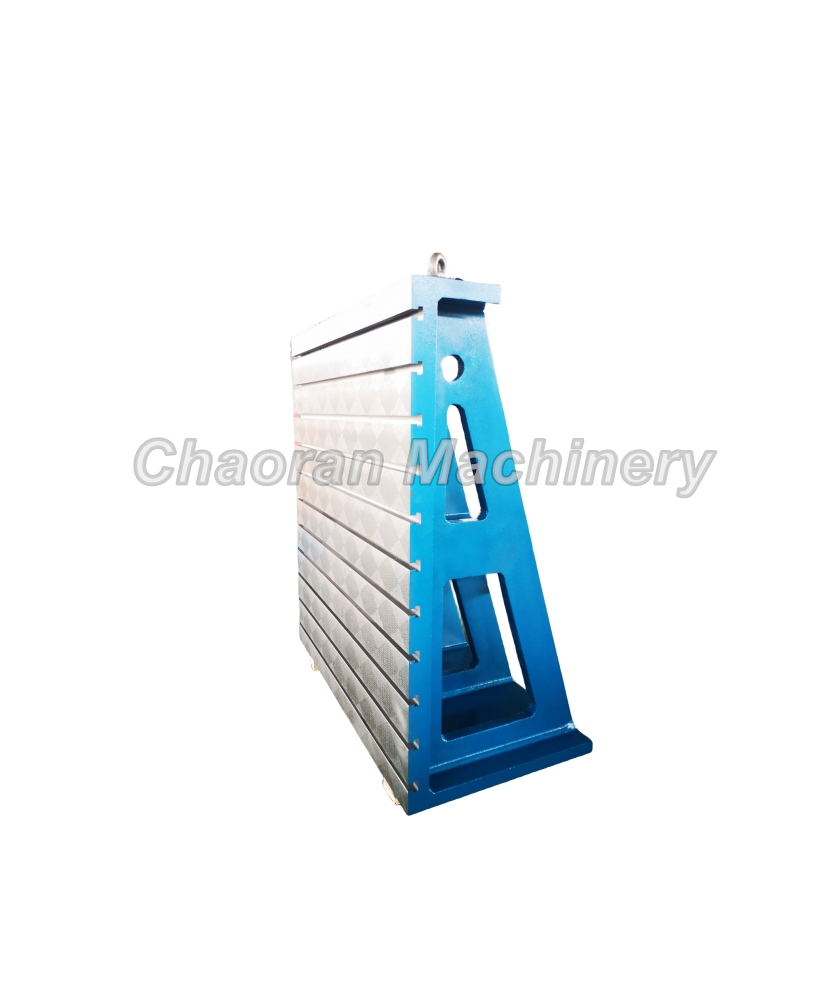

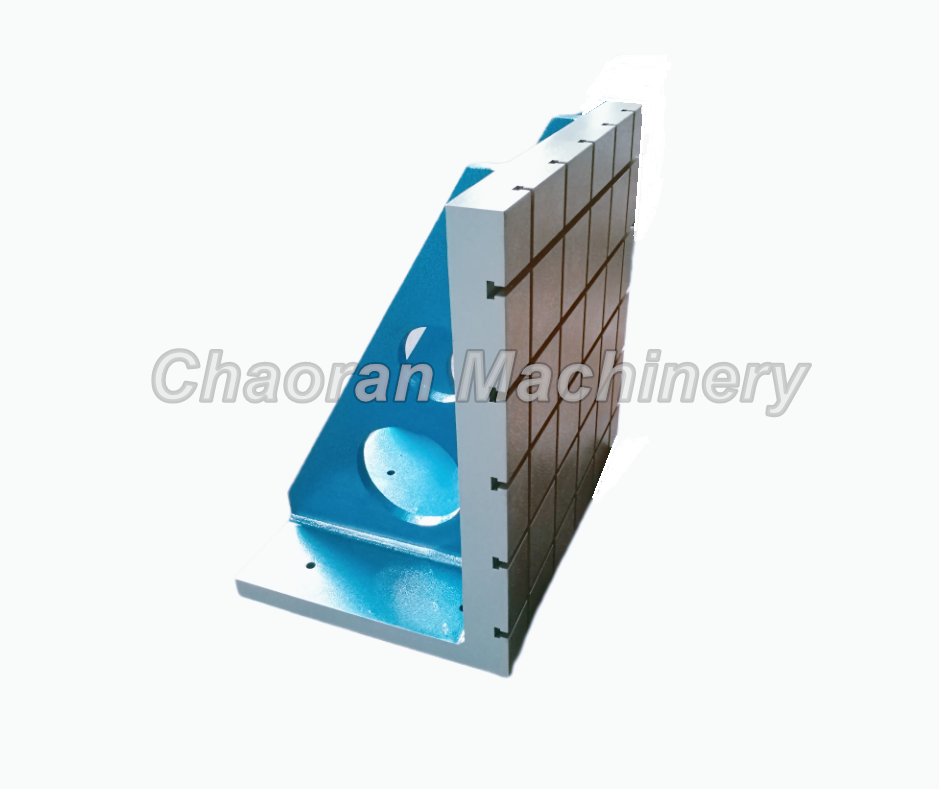

The clamping surfaces of the standard angle plates have been machined in accordance with DIN 876/III and provided with T-slots in accordance with DIN 650 ranging from 12 to 42 mm.
The base of the angle plates have clamping slots and drill-holes adjusted to the clamping options of the machine table.
Standard sizes:
H | W | B |
mm | mm | mm |
1500 | 800 | 800 |
1500 | 1000 | 800 |
1500 | 1250 | 800 |
1500 | 1500 | 800 |
2000 | 800 | 800 |
2000 | 1000 | 800 |
2000 | 1250 | 800 |
2000 | 1500 | 800 |
2500 | 800 | 800 |
2500 | 1000 | 1200 |
2500 | 1250 | 1200 |
2500 | 1500 | 1200 |
3000 | 800 | 1200 |
3000 | 1000 | 1200 |
3000 | 1250 | 1200 |
3000 | 1500 | 1200 |
Particularly large and heavy angle plates can also be supplied in several sections. These can then be arranged in either a vertical or horizontal row to obtain the highest or widest possible clamping surface.
