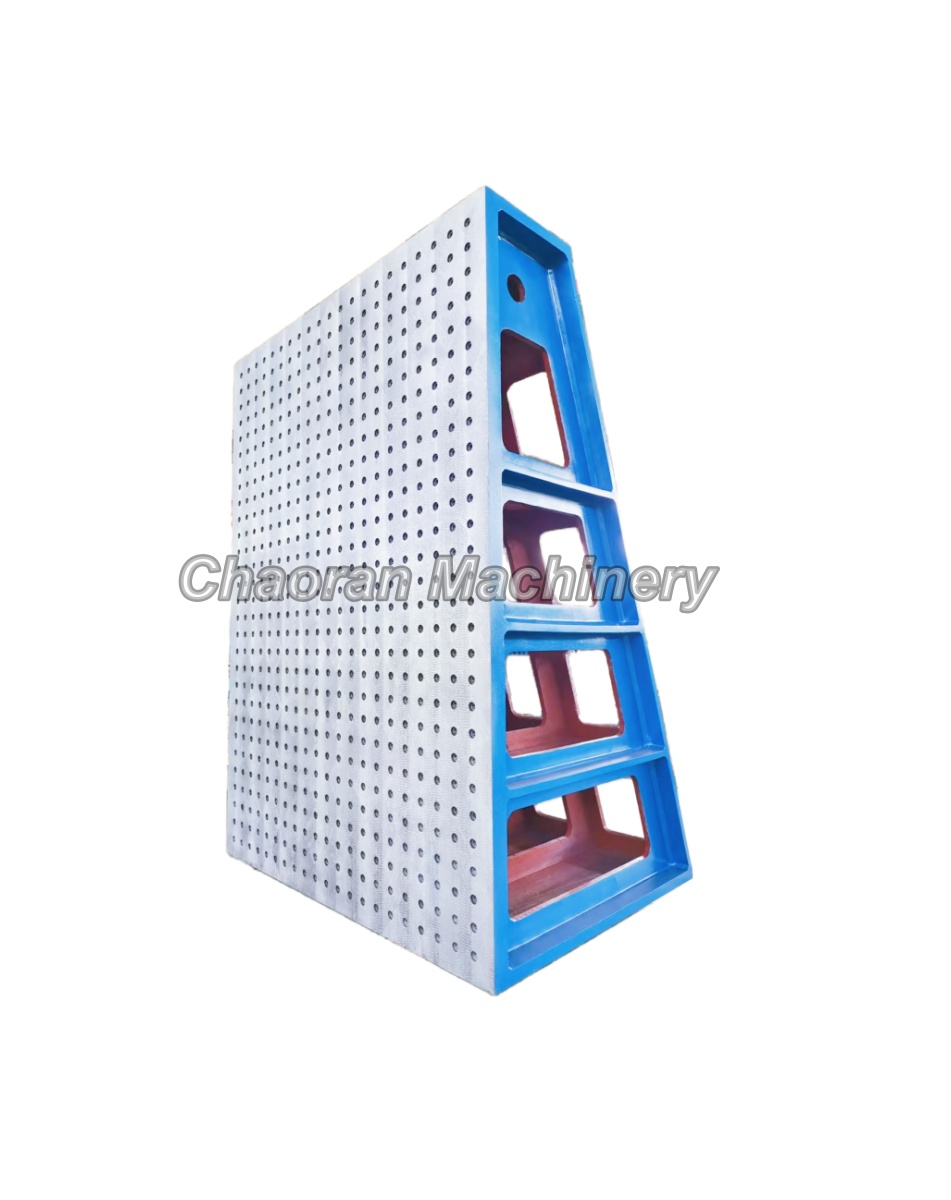

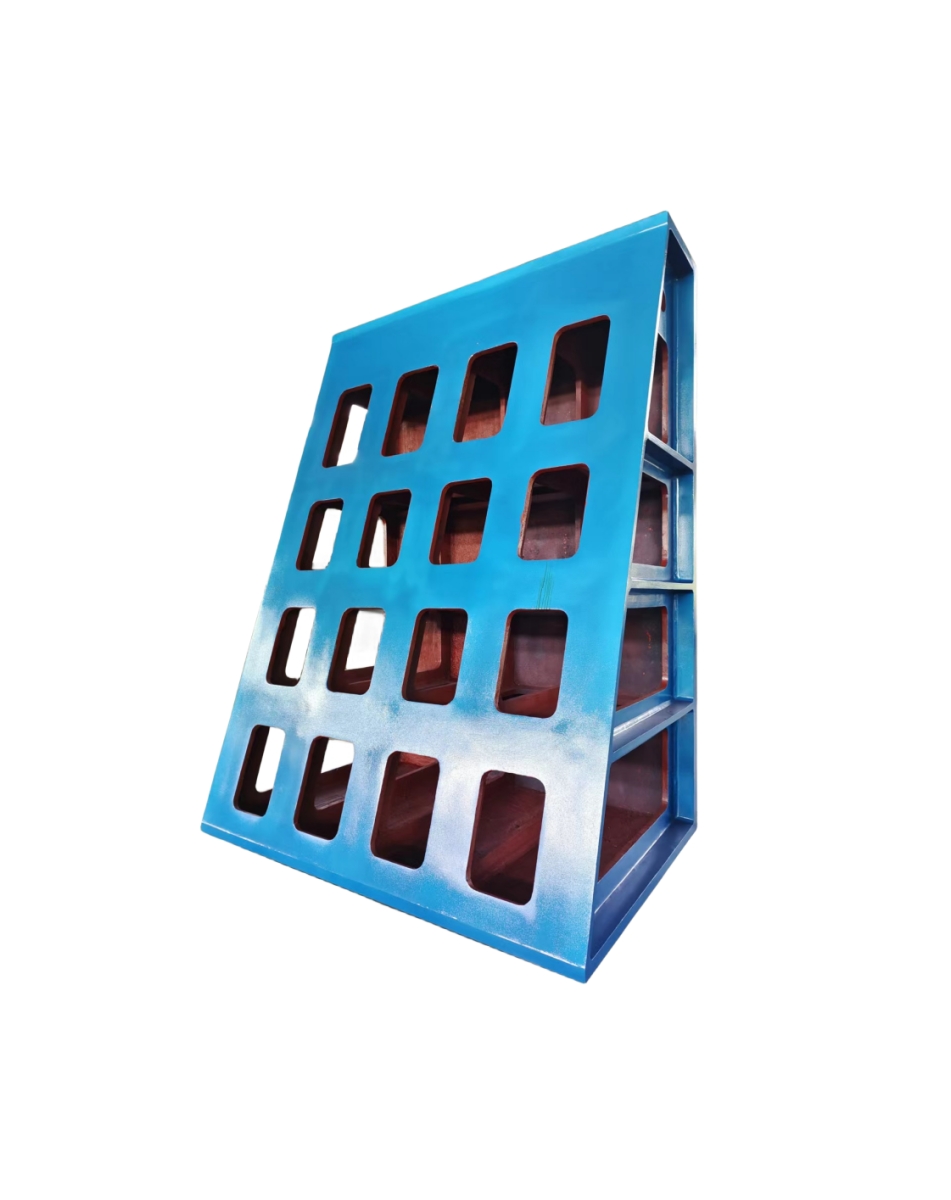

Angle plate with screw holes

Material Gray cast iron/ steel
Size Customized
Roughness Ra1.6~6.3
Surface treatment Fine milling/Hand scraping
Flatness Standard DIN876 Grade 2/3
Package Plywood case with anti-rust treatment
Hole dimension M24
Hole space 100mm
Detail

Material:GG25 / HT250

The clamping surfaces   have been machined in accordance with DIN 876/III and provided with hole dimensions M24 or others in 50~200mm space.


Particularly large and heavy angle plates can also be supplied in several sections. These can then be arranged in either a vertical or horizontal row to obtain the highest or widest possible clamping surface.
