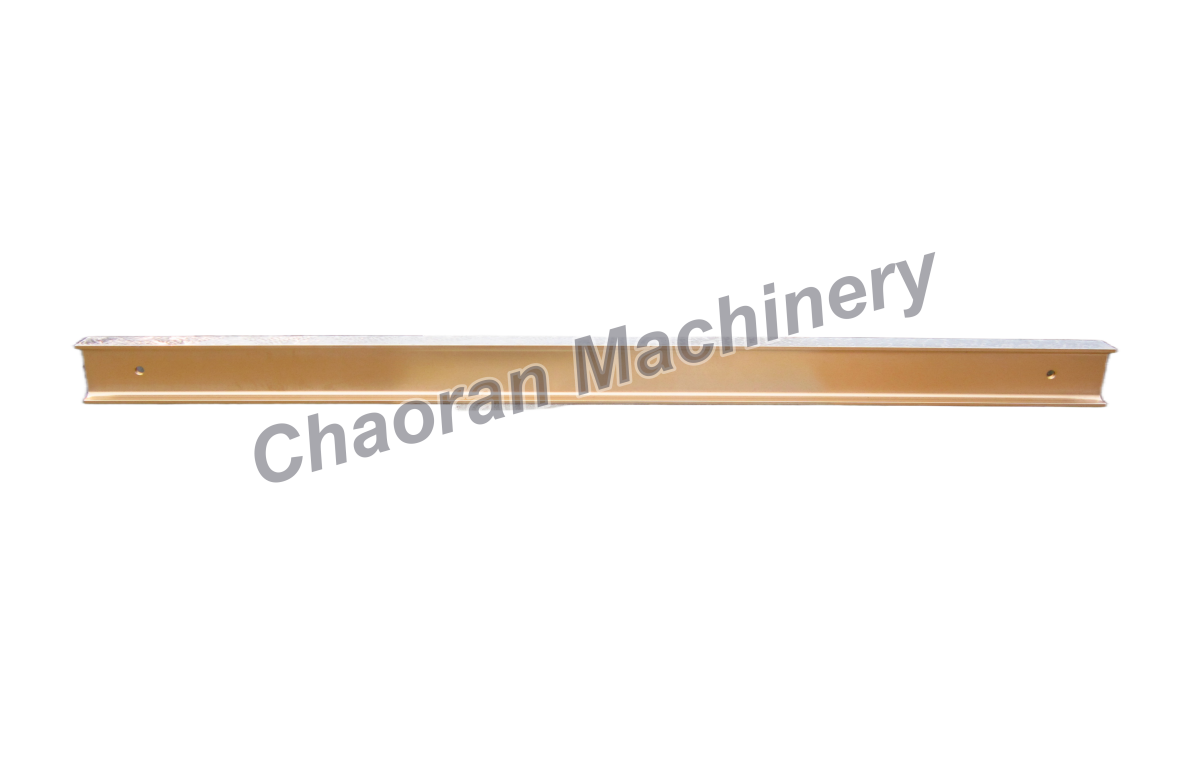

Magnalium straight edge

Magnalium straight edge is commonly found in the applications, for instance, inspection, measurement, scribing, equipment installation, and engineering construction.

Features

· Light Weight
The precision straight edge of no longer than 2 meters has the average weight of 1.5kg/m, and the one of longer than 2 meters is available with the average weight of 3kg/m. A 6 meters long straight edge only weights 18 kilograms. Therefore, our product even can be conveniently used by one person.

· Resistance to Deformation
In general, the common type steel has the yield point of only 30kg/mm2, and the cast iron has the yield point of 38kg/mm2. Dissimilarly, magnalium has the yield point up to 110kg/mm2. For that matter, it is a kind of engineering straight edge extremely excellent in anti-bending and anti-deformation performances.

· Easy to Keep
This magnesium alloy straight edge can be hung or laid flat. And its straightness, parallelism will not be affected by the long-term storage.

· Good Anti-rust Performance
No oil coating is required during the application period. If the magnalium straight edge is not to be used for a long term, it should be gently coated with the ordinary type industrial oil, and then it can be stored.
